Description
Brand: CP-Carrillo
Manufacturer’s Part Number: S2233
Part Type: Pistons

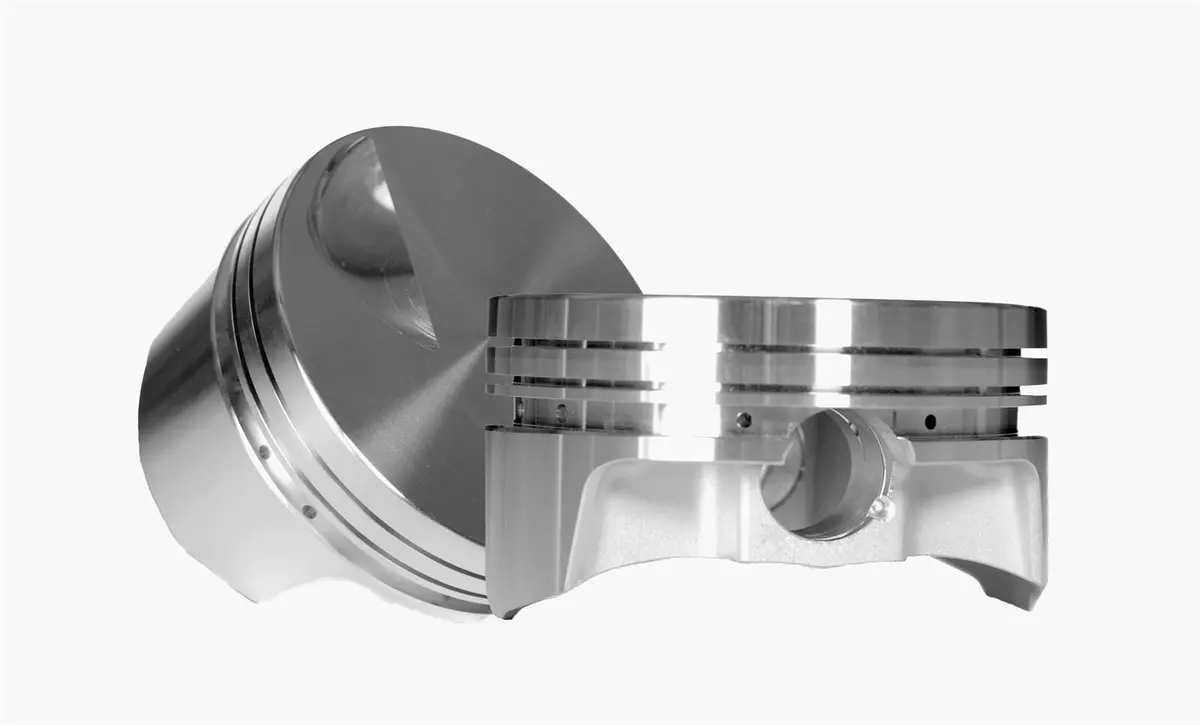

Product Line: CP Pistons 400 Chevy Brodix-12 Dome Pistons
Automotive Fittings Part Number: CNN-S2233
Piston Rings Included: No
Bore (in.): 4.145 in.
Bore (mm): 105.283mm
Stroke: 3.750 in.
Engine Stroke Type: Stroked
Rod Length: 6.000 in.
Piston Style: Dome, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.125 in.
Dome Height (in.): 0.175 in.
Piston Head Volume (cc): -1.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: No
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in.
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold individually.
Notes: Supplied with double spiral locks. Rail supports included. Will accommodate .70-.125 V.R spacing.
Description:
CP Pistons 400 Chevy Brodix-12 dome pistons are built for all-out performance. These pistons use a radius valve relief and a radius dome to increase flow and compression. Their double-pin oilers are fed from the oil ring, keeping the wrist pins smooth and cool when the rpm starts turning up.
Additional features:
* Accumulator groove
* Dedicated right and left hand forging
* Wrist pins and pin-fittings
* Pick lock grooves for easy lock removal
* Fully CNC-machined design
