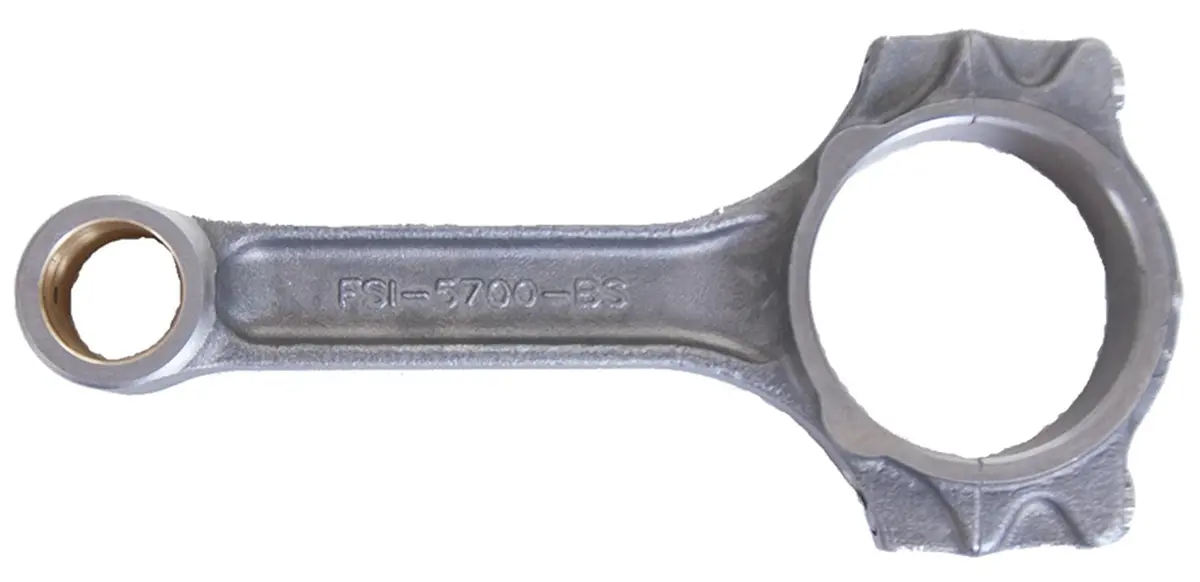

Eagle Fsi I-Beam Forged Connecting Rods, 5.700″ Length – Fsi5700B-1

Description

Brand: Eagle Specialty Products
Manufacturer’s Part Number: FSI5700B-1
Part Type: Connecting Rods
Product Line: Eagle FSI I-Beam Connecting Rods
Automotive Fittings Part Number: ESP-FSI5700B-1
UPC: 00793348003023
Connecting Rod Length Center to Center (in.): 5.700 in.
Connecting Rod Beam Style: I-beam
Connecting Rod Material: Forged 4340 steel
Wrist Pin Style: Floating
Rod Journal Diameter (in.): 2.100
Big End Bore Diameter (in.): 2.2250
Quantity: Sold individually.
Cap Retention Style: Cap screw
Big End Width (in.): 0.940
Clearanced for Stroker: No
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 7/16 in.
Connecting Rod Bolt Material: 8740 chromoly steel
Connecting Rod Bolt Head Style: 12-point
Approximate Connecting Rod Weight (g): 590
Advertised Horsepower Rating: 700 hp
Pin End Width (in.): 1.000 in.
Weight Matched Set: No
Remanufactured: No
Magnafluxed: No
Connecting Rod Color: Shot-peened
Description:
Eagle FSI I-beam connecting rods are forged strong from 4340 steel. They are fitted with 7/16 in. ARP 8740 cap screw-style rod bolts, alignment sleeves for precise cap location, and silicone bronze pin bushings. Sizing is performed using the Sunnen Kross grinding system and is weight-matched to +/- 1 gram. Get your modified pump-gas racing engines cranking with FSI I-beam connecting rods from Eagle.
