Description
175amp Anderson Plug | Red
Sold as a pair
| Product | red anderson plug |

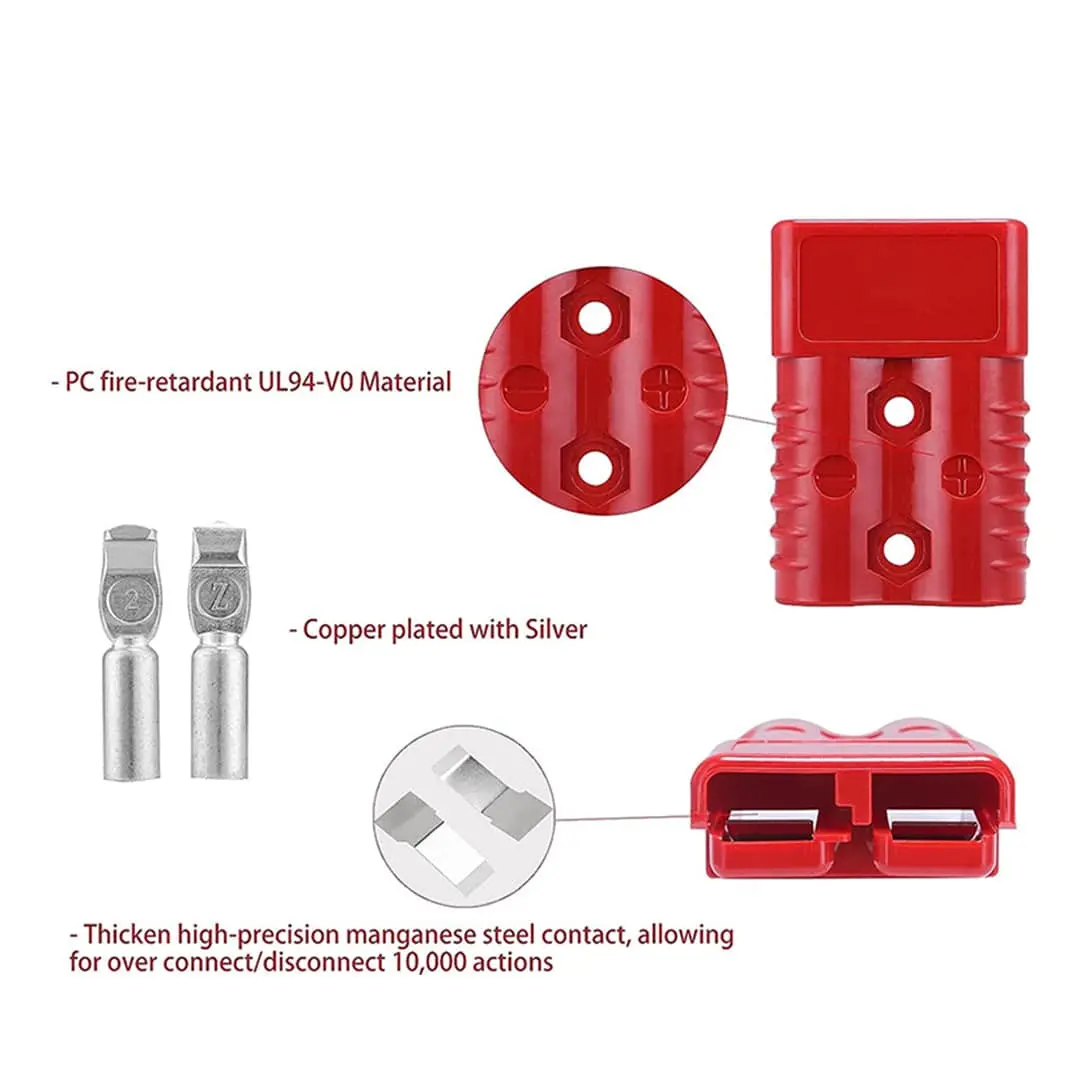

| Material | PC fire-retardant materials+stainless steel |
| Contacts material | copper silver |
| Rated Current | 175A |
| Voltage | 12-36V |
| Gauge (AWG) | 2-4 Gauge |
| Voltage Current | 600 volts DC or AC |
| Product installation range | cars,off-road vehicles,buses,RVs,yachts,boats,etc. |
* Fits 2-4 Gauge wire; Capacity: 175A; Voltage: 12~36V, with standing max voltage: 600V.
* Made of sturdy polycarbonate with fitted rubber boot covers; allows for quick power connection /disconnection from winches, trailers, tourism bus, electric forklift and other electrical devices.
* Easy to install. Insert the wires into the terminal pins, then solder or crimp them. Connector ends are identical, so either end is suitable for connection to the power or load side.
* Connector dimension（LxWxH）: 3.11″ x 2.11″ x 1″ ; Connected set dimension（LxWxH）: 5.22″ x 2.11″ x 1″.
