Description

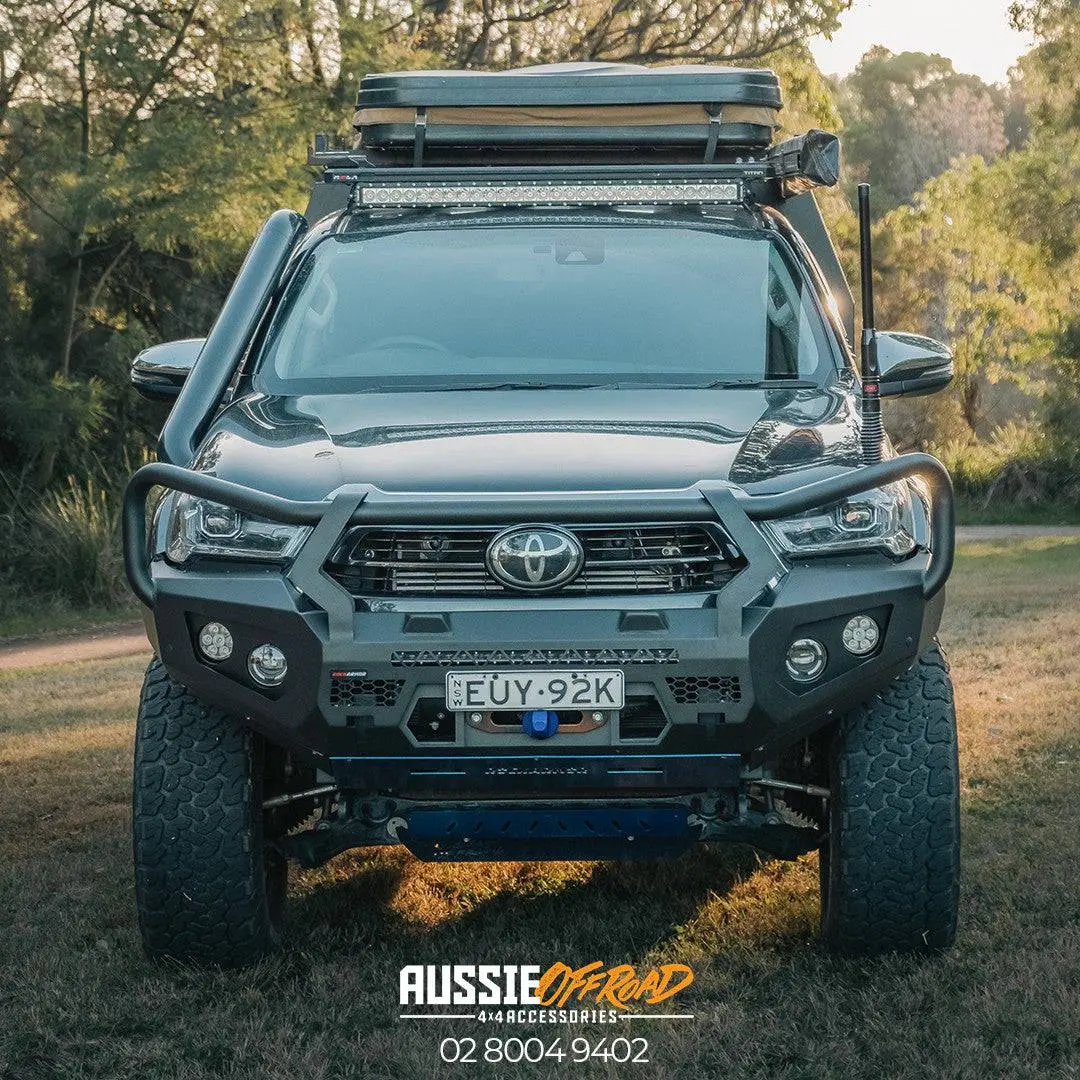

TOYOTA SR & SR5 Hilux 08/2020 – 03/2024

Offroad Frontal Pack

GT V2 Bull Bar + R85Spotties + 12,000Lbs Rockarmor Winch

   N80 Hilux Rockarmor GT V2 Bull Bar | 08/2020+ https://www.youtube.com/watch?v=8PClSMJqStoWinch Specifications:

Manufacturer: Rockarmor 4×4 Line Pull:  5,443kgs / 12,000lbs  Motor: Series Wound DC12V / 7.2HP  Gear Train: 3 Stage Planetary  Gear Ratio: 216:1 Free Spooling Clutch with Rotating Gear Ring  IP67 Rated (2 Hours Fully Submersible)  Synthetic Winch Rope: 9.5mm x 28 metres  Wireless Receiver:  Built into the Control Box  Isolator Switch: Built into the Control Box  Drum Size: 64mm x 224mm Weight of Winch: 26kgs  Mounting Bolt Pattern: 254mm x 114.3mm  Dimensions: 535 X 162 X 170MM   R85 LED SPOTTIES SPECS VOLTAGE: 9-32v  LED CHIPS: 15 x 10w High Intensity Osram Chips  Waterproof & Dustproof: IP68  LED POWER: 150w   LUMENS: 16600LM  COLOUR TEMP: 6500 (Kelvin) BEAM: Driving Spot  LUMINATION DISTANCE: 1 LUX @800M   MATERIAL: Diecast  Aluminium Steel Bracket  LENS MATERIAL: Poly Carbonate Lens LIFETIME: 80,000+ hours  Warranty: 1 year      If your vehicle’s suspension is not yet upgraded to withstand 60-100kgs, we do recommend that you upgrade the suspension, especially in the front of the vehicle to withstand the weight of the bull bar & optional winch (if an electric winch is installed with the bull bar) If your vehicle’s suspension is not upgraded, or if you are running factory suspension, your front suspension will sag and the ride will bumpy which can possibly lead to further damage.  We recommend when fitting the bull bar to leave a minimum 10-15mm gap between the bull bar and body of the vehicle. This will allow for movement where the chassis & body move independently.    Warranty: The bull bar / Winch / LED Spotties are provided with a 12months Manufacturers Warranty from Rockarmor 4×4
